出口HMPP泵站污水处理设备
编辑：出口污水处理设备 来自：https://www.zqwscl.com /日期：2023-09-12 11:31 / 人气：
出口高模量聚丙烯HMPP缠绕泵站材料是当前用于埋地排水排污的一种塑性材料，是目前市场上排水系统较理想的材料。该款材料，屈服强度30MPA以上，弹性模量≥1500MPa,HDPE弹性模量仅为800MPa，材料的弹性模量对所生产的产品环刚度起到决定性作用，弹性模量越高，产品环刚度越高。
出口HMPP泵站污水处理设备
出口HMPP泵站污水处理设备材料特性：
1 耐温性
HMPP耐温范围为-20-90℃，在高温方面要优于HDPE
2 耐腐蚀性
HMPP能抵抗300多种化学腐蚀，优于HDPE(可查ISO/TR10358)
3 耐磨蚀性
HMPP >HDPE>PVC
4 水利条件好
内璧粗糙度是水水泥管的1/1000，流通能力是水泥管的1.3倍
5 使用寿命长
该款材料拥有良好的长期寿命，据欧洲市场应用反馈预计使用寿命超过100年

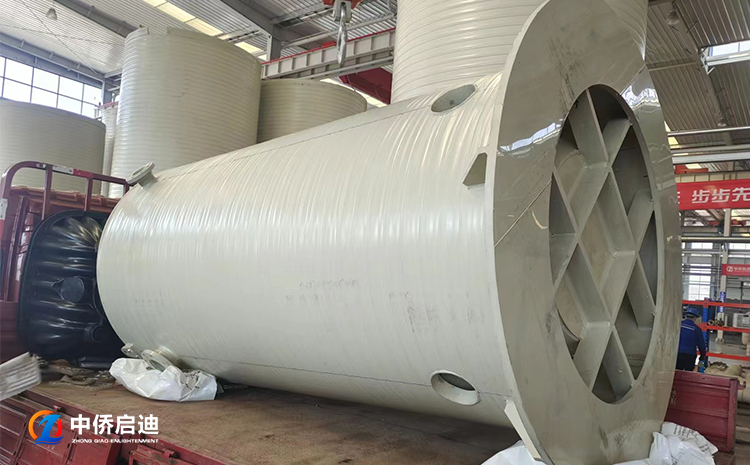

出口HMPP泵站污水处理设备结构和外观：
① 颜色：米白色，外壁可根据需要定制
② 结构：由承口、插口、肋管（支撑筐+包覆）、底片构成
出口HMPP泵站污水处理设备
出口HMPP泵站污水处理设备生产工艺：
HMPP缠绕结构璧泵站生产采用二次次缠绕成型技术，不同于目前市场的克拉管一次缠绕成型技术，即底层和肋管一次性缠绕到模具上，缺点是管材内部存在应力，肋管变形量大，型高低。
二次缠绕成型是指管材底层和肋管分两次缠绕，先底层缠绕，经充分风冷过程，底层材料结晶完成，内部材料应力得到充分释放后，再加热底层表面做肋管缠绕，最后进行外壁缠绕，二次缠绕环刚度比一次缠绕约高500%。且一次缠绕成型管材内部存在应力，肋管变形量大，型高低。
由于环刚度与惯性矩呈正比关系，即同等规格的管材，二次缠绕生产工艺产品比一次缠绕生产工艺产品环刚度约高15%-33%。造价方面HMPP缠绕泵站比HDPE缠绕泵站还要低，性价比更高。
中侨启迪出口一体化HMPP泵站是山东中侨启迪环保装备有限公司新研发出的一种新污水提升泵站产品，主要用来代替玻璃钢和碳钢产品，HMPP材质具有高强度和高韧性的特点，且生产环节更加的环保、材质具有可回收性，更加适用于环境友好型的社会发展理念。
出口HMPP泵站污水处理设备
Chinese enlightenment export HMPP pump station sewage treatment equipment is a new material PP cylinder as the main body, due to the integration of sewage treatment pump station can make debugging to the destination, and direct installation, therefore can minimize the site installation time, integration of sewage pumping station compared with traditional sewage pump station has small size, covers a small area, safe use of simple installation, so is widely adopted. Export high modulus polypropylene HMPP winding pump station material is a plastic material used for buried drainage and discharge, which is an ideal material for drainage system on the market. The yield strength of this material is above 30 MPA, the elastic modulus is 1500MPa, and the HDPE is only 800MPa. The elastic modulus of the material plays a decisive role in the ring stiffness of the product. The higher the elastic modulus, the higher the ring stiffness of the product.
Material characteristics of sewage treatment equipment at the outlet HMPP pump station:
1 Temperature resistance
HMPP has a temperature resistance range of-20-90℃, which is better than HDPE in terms of high temperature
2 Corrosion resistance
HMPP is resistant to over 300 chemical corrosion, over HDPE (ISO / TR10358)
3. Wear resistance
HMPP >HDPE>PVC
4. Good water conservancy conditions
The roughness of the inner wall is 1 / 1000 of the water cement pipe, and the circulation capacity is 1.3 times that of the cement pipe
5. Long service life
This material has a good long-term life, according to the European market application feedback is expected to last more than 100 years
Structure and appearance of sewage treatment equipment at the outlet HMPP pump station:
① Color: m-white, the outer wall can be customized according to the need
② Structure: composed of socket, socket, rib tube (support basket + coating) and substrate
Production process of sewage treatment equipment at outlet HMPP pump station:
The production of HMPP winding structure bi pump station adopts the secondary winding forming technology, which is different from the primary winding forming technology of carat tube in the current market, that is, the bottom layer and rib tube are interwound to the mold at one time. The disadvantage is that there is stress inside the pipe, the rib tube has large deformation and high and low shape.
Secondary winding forming refers to the bottom pipe and the rib tube in two winding, the first bottom layer winding, after the full air cooling process, the bottom material stress is fully released, the surface of the bottom layer for the rib tube winding, and finally the outer wall winding, the secondary winding ring stiffness is about 500% higher than the first winding. And there is stress inside the primary winding molding pipe, the rib tube deformation, high and low.
Due to the proportional relationship between the ring stiffness and the moment of inertia, that is, the ring stiffness of the secondary winding production process product is about 15% -33% higher than that of the primary winding production process product. In terms of cost, HMPP winding pump station is lower than HDPE winding pump station and more cost-effective.
Chinese enlightenment export integration HMPP pump station is Shandong Chinese enlightenment environmental protection equipment co., LTD., a new developed a new sewage pump station products, mainly used to replace FRP and carbon steel products, HMPP material has the characteristics of high strength and high toughness, and production more environmental protection, material is recyclable, more applicable to environmentally friendly social development concept.
