出口新型一体化污水处理设备
编辑：出口污水处理设备 来自：https://www.zqwscl.com /日期：2023-09-19 10:55 / 人气：

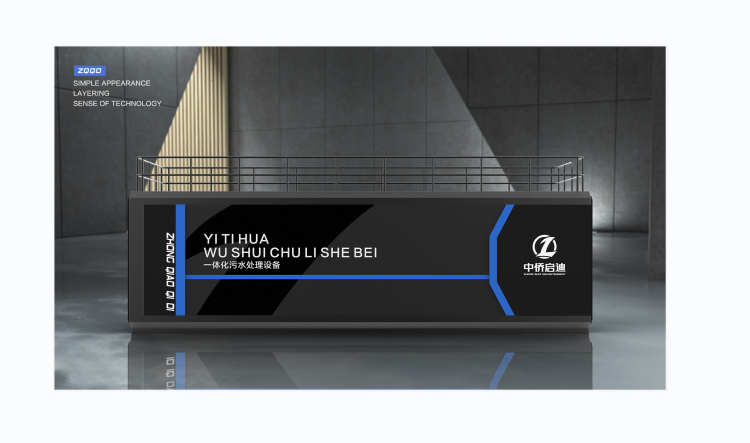

大家来看一下，我们新款的出口污水处理设备的外观和以往碳钢设备有着很大的改变，新外观也是咱们此次研发设计的吸睛点，经过工业设计的外观，设备外形尺寸的增加和现有外观有直径关系，如果客户选择咱们新款设备的外观，外形尺寸和新款设备是一致的，这次新款设备不仅仅只是样品，也可以量产。
出口的新型一体化污水处理设备采用的是多级AO工艺，并且缺氧池和好氧池填料均为聚氨酯MBBR填料，曝气是管式曝气器，所有回流均为“气提”回流方式。砂滤池反洗工艺为“气、水”反洗，此反洗工艺对砂滤池反洗更彻底。此工艺适用于含氮量比较高、温度低的地区。它能够处理生活污水和普通综合性医院污水，排放标准可以达到一级A标准。
出口新型一体化污水处理设备的工艺流程说明：
污水流经化粪池，经格栅池格栅去除较大的杂质后，自流进入调节池，经过调节池调节水量，均化水质后，通过污水提升泵污水进入释氧池，释氧池可以最大限度的释放污水中溶解氧的含量，释氧池的污水自流进入厌氧池，但是来自沉淀池的污泥回流带来的溶解氧会破坏厌氧池的功能环境，所有由释氧区的污水稀释这部分溶解氧的含量，最大可能的保证厌氧池的功能环境，强化了除磷效果，厌氧池的污水自流进入一级A/O、二级A/O池，利用两级缺氧和好氧环境条件的串联变化强化了生物脱氮效果并去除部分有机物。两级A/O 工艺设回流泵，其目的是将各段好氧池的硝化液部分回流至各自的缺氧池，以保证脱氮工艺稳定运行，好氧池内投加了新型MBBR聚氨酯填料，由于填料密度接近于水，所以在曝气的时候，与水呈完全混合状态，另外，每个填料载体内外均具有不同的生物种类，内部生长一些厌氧菌或兼氧菌，微生物生长的环境为气、液、固三相。载体在水中的碰撞和剪切作用，使空气气泡更加细小，增加了氧气的利用率，外部为好养菌，这样每个载体都为一个微型反应器，使硝化反应和反硝化反应同时存在，从而提高了处理效率，并且对污泥减量的效果同样十分明显，好氧池的污水进入竖流沉淀池，使污泥高效率的沉降，一部分回流到厌氧进行释磷，一部分定期排除，去除总磷，竖流沉淀池的污水自流进入高效沉淀池，进一步去除悬浮物，减小后续单元的负荷，高效沉淀池的上清液流入深度过滤池，进行深度过滤处理，污水最后进入紫外线消毒后，达标发放。
设备详情：
1、处理水量：24方/天
2、处理水质：生活污水、普通综合性医院污水
3、排放标准：城镇污水处理厂污染物排放标准 （GB 18918-2002）一级A
4、设备规格尺寸：箱体尺寸6×2×2.5m；
外形尺寸：6.3×2.5×2.7m
5、设备自重：7.54吨
6、设备板厚：6mm
7、设备运行重量：≧37.54吨
以上就是中侨启迪出口的新型一体化污水处理设备，如果您想订购，可以联系中侨启迪的客服。
After independent research and development, the engineers successfully launched a new integrated sewage treatment equipment. The equipment adopts advanced technology, reliable quality, low energy consumption, high accuracy and stable operation. Please consult for the specific information of the export sewage treatment equipment.
Everybody to take a look at the appearance of our new export of sewage treatment equipment and carbon steel equipment has a big change, the new appearance is we the development design, after industrial design, the appearance of the increase of equipment size and existing appearance diameter relationship, if the customer choose the appearance of our new equipment, size and the new equipment is consistent, the new equipment is not only a sample, can also be mass production.
The new integrated sewage treatment equipment at the outlet adopts multi-stage AO process, and the anoxic tank and aerobic tank packing are polyurethane MBBR packing, aeration is a tubular aerator, and all the reflux is "gas lift" reflux mode. The backwashing process of the sand filter is "gas and water" backwashing, and this backwashing process backwashes the sand filter more thoroughly. This process is suitable for areas with relatively high nitrogen content and low temperature. It can treat domestic sewage and general general hospital sewage, and the discharge standard can reach the level A standard.
Description of new integrated sewage treatment equipment:
Sewage flows through the septic tanks, After removing large impurities from the grille pool grid, Self-flow into the regulating pool, After adjusting the water quantity through the regulating pool, After homogenizing the water quality, Enter the oxygen release tank through the sewage lifting pump, The oxygen release tank can maximize the release of the dissolved oxygen content in the sewage, The sewage from the oxygen release tank flows into the anaerobic tank, But the dissolved oxygen brought by the sludge reflux from the sedimentation tank will destroy the functional environment of the anaerobic tank, All the content of this part of dissolved oxygen diluted by sewage from the oxygen release zone, Maximum possible guarantees of the functional environment of the anaerobic pool, Strengthening the effect of phosphorus removal, The sewage from the anaerobic tank flows into the primary A / O and secondary A / O pools, The series change of two-stage hypoxia and aerobic environmental conditions strengthened the effect of biological nitrogen removal and removed some organic matter. Two levels of A / O process reflux pump, its purpose is to nitrate part of each section to their respective oxygen pool, to ensure the stable operation of nitrogen removal process, add new MBBR polyurethane packing tank, because the filler density is close to water, so in the aeration, and water is completely mixed state, in addition, each packing carrier has different biological species, internal growth of some anaerobic bacteria or oxygen bacteria, microbial growth environment for gas, liquid, solid three phase. The collision and shear action of the carriers in the water, Make the air bubbles even smaller, Increincreased the utilization of oxygen, External for good bacteria, Such that each carrier is a microreactor, For both nitrification and denitrification, Thus improving the processing efficiency, And the effect of sludge reduction is also very obvious, Sewage from the aerobic tank enters the vertical flow sedimentation tank, Make the efficient sludge settlement, Part of the reflux to the anaerobic oxygen for phosphorus release, A portion is regularly excluded, To remove the total phosphorus, The sewage from the vertical flow sedimentation tank flows into the highly efficient sedimentation tank, Further removal of the suspended matter, Reduce the load of the subsequent units, The supernatant of the efficient sedimentation tank flows into the deep filter tank, Conduct the deep filtration processing, After the sewage finally enters the ultraviolet light for disinfection, Standard distribution.
Equipment details:
Treatment water quantity: 24 square meters / day
Treatment water quality: domestic sewage, general hospital sewage
Discharge standard: urban sewage treatment plant pollutant discharge standard (GB 18918-2002) level A
Equipment specification size: box size 6×2×2.5m;
Overall dimensions: 6.3×2.5×2.7m
Equipment dead-weight: 7.54 tons
Equipment plate thickness: 6mm
Operating weight of the equipment: 37.54 tons
The above is the new integrated sewage treatment equipment exported by Zhongqi enlightenment. If you want to order, you can contact the customer service of Zhongqi enlightenment.
